G-TRAN Series SH/ST200

  • Share

Full Range Measurement Simplified

Measuring pressure across a spectrum from atmospheric conditions to high vacuum ranges with a single method is currently unfeasible with existing technologies. To address this, complex vacuum gauges integrating multiple sensor types within a single unit have become common. However, these systems are costly and challenging to maintain. ULVAC has introduced a novel approach with its separate sensor head method (patent pending). This design not only measures a broad range of pressures but also reduces operating costs and simplifies maintenance.

Get More Information

Request Engineering Information Request a Demo 978-686-7550

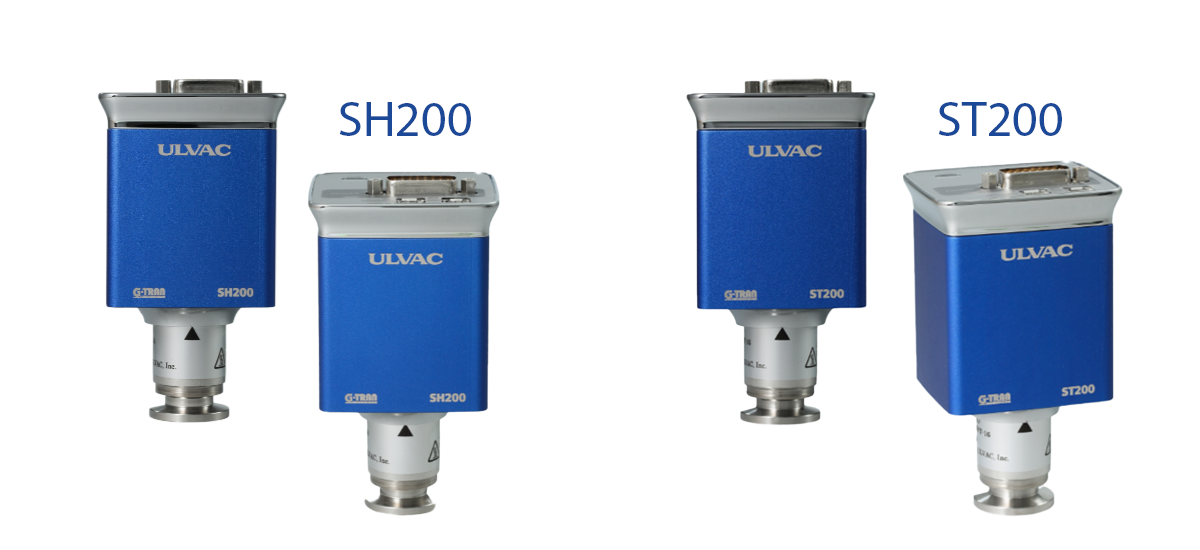

  • SH/ST200: Bayard Alpert type ionization gauge. For ultra high vacuum measurement.
  • Connectable with different measurement range sensor heads. Minimal parts replacement in case of failure.
  • Compact Achieved world’s smallest class. (56% reduction of controller volume compared to the previous model) Higher usability Easy set point setting and status checking by connecting Windows PC / Android.
  • Filament life alarm function Telling sensor head exchange timing before filament break by monitoring filament power.
  • Highly improved usability by connecting Windows PC / Android
  • Easy set point setting (no need for powersupply from host systems*)
  • Real-time trend graph display
  • Error status display
  • Data logging function (CSV output)
    *Power supply required when measuring.



Ionization Gauges

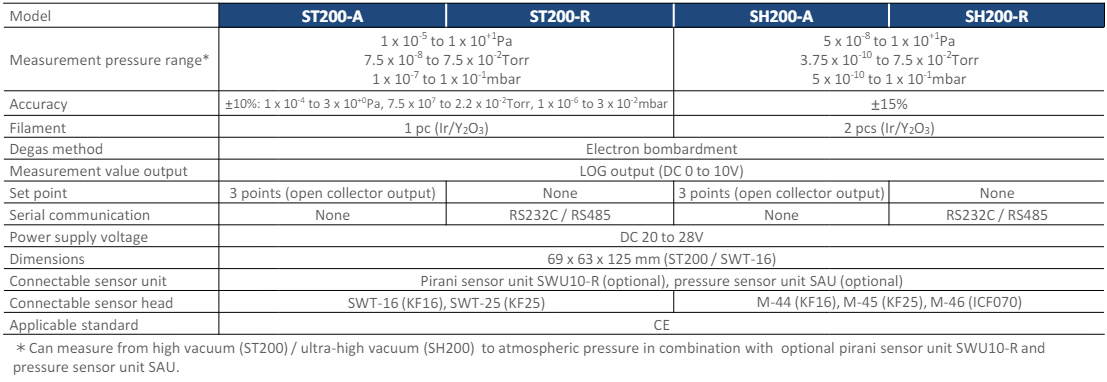

Download Spec Sheet Download Bill of Materials
